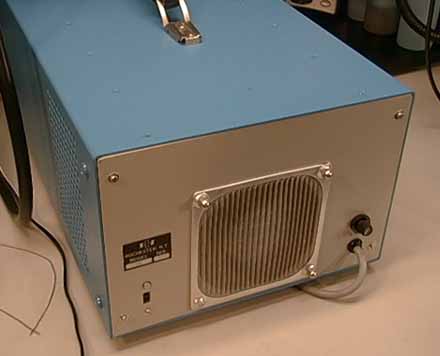

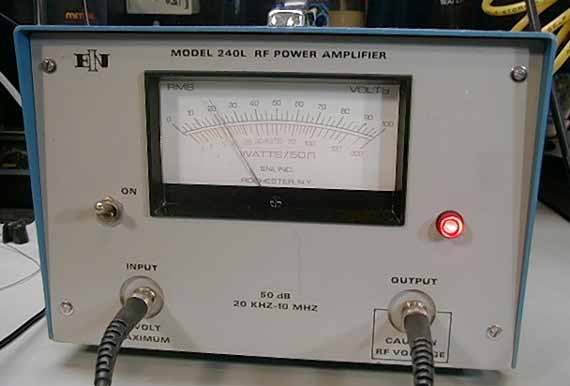

ENI 240L Amplifier
40 Watts : 10 MHz

Specs:

Form Factor:  Benchtop
Type:  Solid State
Nominal Power:  40 Watts
Flatness:  1.5 dB
Min. Frequency:  20 kHz
Max. Frequency:  10 MHz
Gain:  50 dB
Input Impedance:  50 Ohm
Output Impedance:  50 Ohm
Input Connector Type: BNC(f)
Output Connector Type: BNC(f)

Features:

• Forced Air Cooling
• Front Panel Meter
• Class A Operation
• Instantaneous Bandwidt
h

Dimensions:

Height:  7in. (178mm)
Width:  10in. (254mm)
Length:  16.5in. (420mm)
Weight:  35lbs. (16kg)
