HP 54622D 2+16 Channel
100 MHz Mixed-Signal Oscilloscope

No Reserve Price

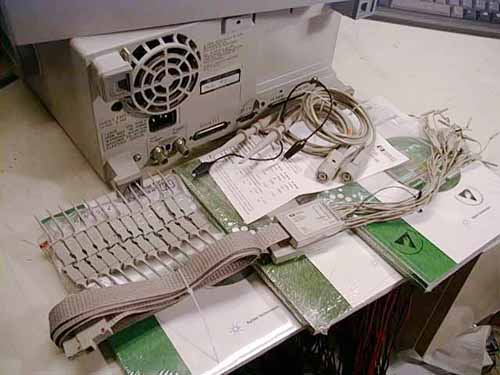

Included:

* HP 54622D Oscilloscope
* (1) Dual 54620-61601 Logic Analyzer
* (2) 10073A 500MHz Probes
* (32) Micrograbbers
* User's, Programmer's, & Service Manuals (unopened in wrappers)
* Front Cover

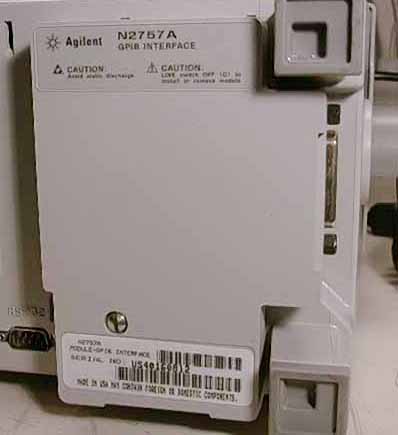

* HP N2757A GPIB Interface Module



Click Here For HP 54600-Series Data Sheet

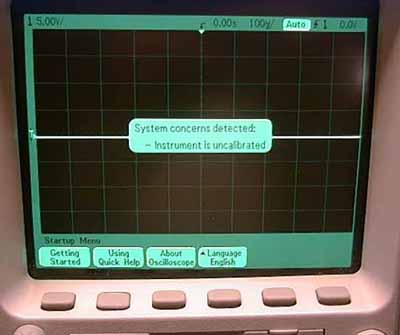

This unit is in both excellent physical and electrical condition with one exception, on power-up, a display appears stating the unit is out of calibration and it fails its "self-cal". This may be due to the fact that this unit is a production Prototype (#1) I fully  fully tested this scope for both Freq, Amplitude,  Triggering and  Math functions and the scope performed flawlessly.  It  is "very clean" all around but may some minor glitches due to the proto type nature of this unit other than the display but I couldn't find any.



Characteristics:

The Agilent 54622D 2+16 channel, 100 MHz Mixed-Signal Oscilloscope (MSO), with two scope channels and 16 logic timing channels, uniquely combines the detailed signal analysis of a scope with the multi-channel timing measurements of a logic analyzer. It lets you trigger on and view the complex interactions among your signals on up to 18 channels simultaneously. The 54622D is ideally suited for CPLD and MCU based applications. This unit is decked with 22 measurement functions and advance math including FFT measurements.

Features:

* Unique 2+16 channel MSO model
* 100 MHz
* Patented high-definition display with superior horizontal resolution
* 4 MB of MegaZoom deep memory mapped to 32 levels of intensity, 25 million vectors/sec.
* Powerful, flexible triggering including I²C, SPI, LIN, CAN and USB
* Standard built-in floppy, RS-232 and parallel ports, FFT's
* Quick Help in 11 languages
