New MA/COM SMA-F to OSP-M
&
OSP-F to SMA-F Connectors



Characteristics:

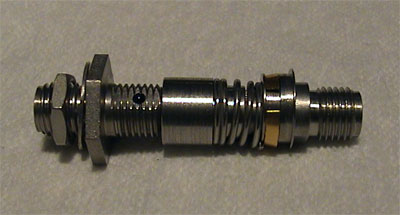

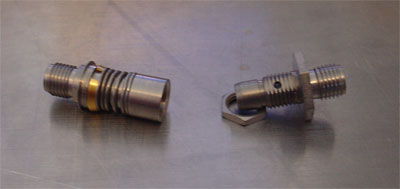

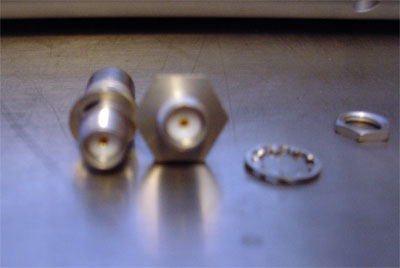

This auction is for a new MA/COM connector set or between series adapters.  The set is comprised of a MA/COM SMA-F to OSP-M and an OSP-F to SMA-F connector.

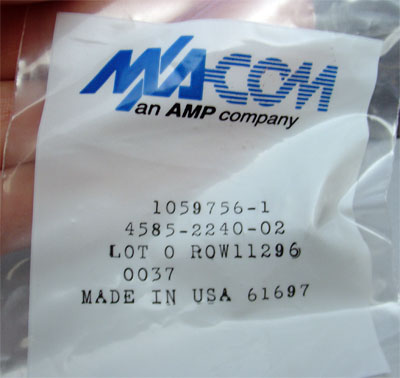

1059756-1 is OSM Jack to OSP Bulkhead Feedthrough Plug Adapter.  (AKA - SMA Female to ITA Male)

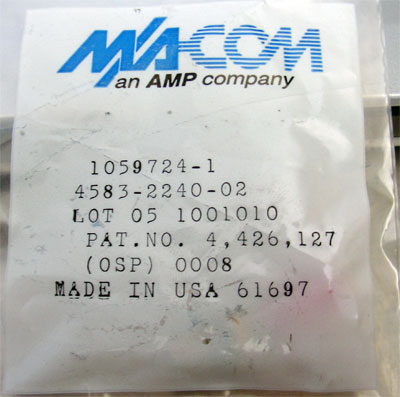

1059724-1 is an OSP Floating Panel Feedthru Rear Mount Jack to OSM Jack Adapter.  (AKA - ITA Female to SMA Female)

If you are confused this is the translation key:
OSM (Tyco/MA Com Nomenclature) = SMA
OSP (Tyco/MA Com Nomenclature) = ITA (Interchangable Test Adapter)

"Why can't we all just get along?"

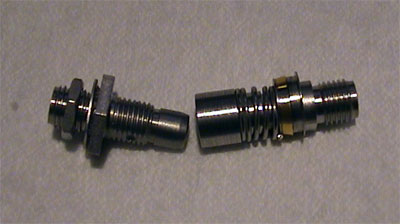

The OSP connector is a 22 GHz quick release blind mating connector that is commonly used in bulkhead mounted modules. The female OSP adapter that we are selling is spring loaded. This design allows a plugin module to mate with these without too high of tolerance.

For Example: This type of connector is used in many network analyzer test fixtures and in the Agilent 86100 Series Interface between the plugins and the mainframe.


OSP = Omni Spectrum Adapter concertivley rated by many companies from 15 to 22 GHz.  A good rule of thumb would be 18 GHZ

Equipment Notes:

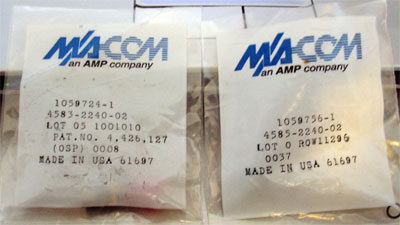

Both connectors are new in the bag unopened.

Warranty:

This item is sold with a 3 Day Satisfaction Guarantee.  So bid with confidence.  As our many customers will attest, we will do our very best to resolve any customer problems. But our official policy is:

This item comes with a 3 day right of return policy.
All returns must be made within 3 days of receipt.
All warranties are void if the calibration / warranty seals are broken.
Equipment must be shipped correctly and returned with all accessories.
Customer is responsible for all shipping charges on returns.
Foreign Buyers please be aware: We offer no warranty or returns on items shipped outside the USA

Payment, Shipping & Bidding:

Buyer will pay $15.00 packing and shipping in the continental United States. Payments accepted are Paypal, cashiers checks and money orders only.  No international buyers unless Paypal verified.  Please feel free to contact us if you need other arrangements.

We will make every effort to ship within 24 hours of receipt of payment. We ship with FedEx & UPS only. We will be glad to ship with other carriers using the purchasers shipping account. Please contact us to make any special shipping arrangements. For shipping rate research, our shipping address is Boulder, CO USA ---- Zip Code is 80305.

Many of our auctions have a set packaging and shipping fee.  This set fee makes the transaction easier and allows the purchaser to send payment at once without having to wait for a shipping total.  This is our best guess on an unpackaged item.  Please consider the total with shipping when you are bidding.

Foreign buyers: Unless special provisions have been made, you are responsible for making your own shipping arrangements and all costs related to customs, duties & special packaging requirements. Please do not ask us to quote you international shipping rates. Use the address information above to research you own shipping rates. You can email sales@ascentconcepts (no spam) .com to get the packaging fee, package weight and size for your research. Items sold outside the USA are sold as is.

Bidders - with no feedback or less then 80% positive feedback must contact us through the eBay email system before placing a bid. We will reply through the same system, documenting that you have been approved to bid. If you do not follow these procedures, your bid will be cancelled.  All other bidders, bid with confidence.



About Us:

Ascent Concepts and Technologies is a Research & Development Lab. As a service to the companies and institutions we work with, we broker their excess equipment & act as application specialists on their new equipment needs. We are now offering quality used equipment to the public with the same level of professionalism and service.

Please feel free to email at thomasknox@ascentconcepts (no spam) .com or call Thomas @ 1-303-554-0307 with any Technical questions. Please feel free to email at waltwhite@ascentconcepts (no spam) .com or call Walt @ 1-720-276-8288 with any Shipping or Logistical questions. We make every effort to evaluate and guarantee our equipment. Although we do not provide NIST traceable calibration, we do have extensive in house calibration equipment and make every effort to test and verify performance on equipment we sell. However we do not warranty any items shipped outside the USA.
